Electronics

Simon has made great progress on the electronics.

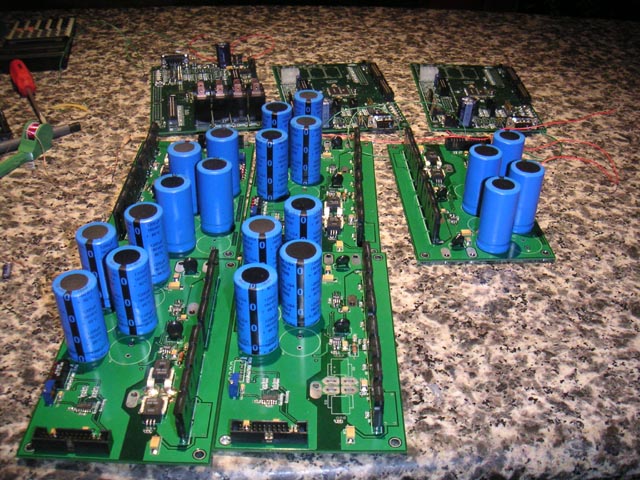

Almost all of the components have been soldered onto the boards:

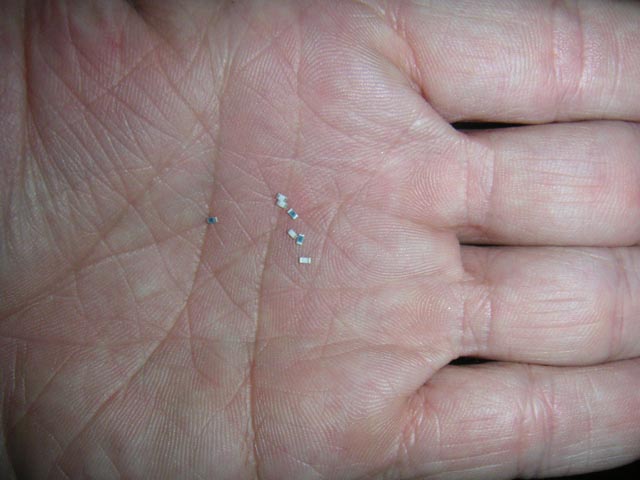

This was a long and meticulous process as many of the components were very tiny.  Here is a picture of some of the resistors:

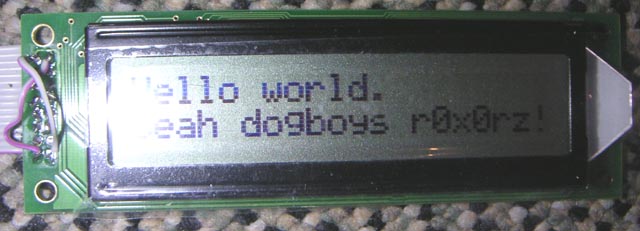

Each board has a port for an LCD screen that can be used for debugging and eventurally getting feedback from the main CPU:


Simon hooked up the cpu board to one of the motor control mosfet boards and began testing. He connected a motor to the mosfet board and lo and behold was able to control the speed of the motor quite nicely.
